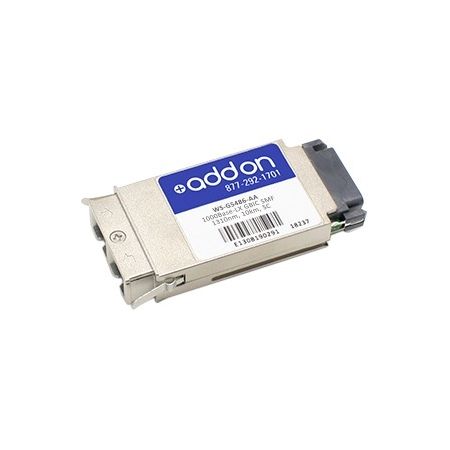

AddOn Cisco WS-G5486 Compatible TAA Compliant 1000Base-LX GBIC Transceiver (SMF, 1310nm, 10km, SC) Item # 3330531
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
3330531
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
This Cisco WS-G5486 compatible GBIC transceiver provides 1000Base-LX throughput up to 10km over single-mode fiber (SMF) at a wavelength of 1310nm using a SC connector. It is guaranteed to be 100% compatible with the equivalent Cisco transceiver. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. It is built to meet or exceed the specifications of Cisco, as well as to comply with MSA (Multi-Source Agreement) standards to ensure seamless network integration.
Product Details
| Item # | 3330531 |
| Manufacturer # | 159010 |
| maximum data transfer rate | 1 Gbit/s |
| height | 0.4in. |
| Additional Information | GBIC Channel Insertion Loss:; Transmitter output power (minimum/maximum): -3/-9.5 dBm; Receiver maximum input power: -3 dBm; Receiver sensitivity: -19 dBm; 50 micron MMF: 4.4 dB; 62.5 micron MMF: 6 dB; 9 micron SMF: 6.5 dB; Contains a Class 1 laser of 1300 nm for 1000BASE-LX/LH (long-wavelength) applications.; Connector polishing:; Super Physical Contact with a 20 micron radius |
| Fiber Optic Cable Standard | 50 µ m; 62.5 µ 8.3/9/10 µ |
| width | 1.2in. |
| depth | 2.6" |
| Product Name | Cisco WS-G5486 Compatible 1000BASE-LX/LH GBIC |
| manufacturer | AddOn |
| Compatibility | Catalyst 4000; Catalyst 5000; Catalyst 6000 |
| Application/Usage | Data Networking |
| weight | 0.96 oz |
| Maximum Distance Supported | 1804 ft |
| brand name | AddOn |
| Interfaces/Ports Details | 1 x SC 1000Base-LX/LH LAN |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode; Single-mode, Long Haul |
| form factor | Hot-swappable |
| model name | WS-G5486 |
| Show More ▾ |
